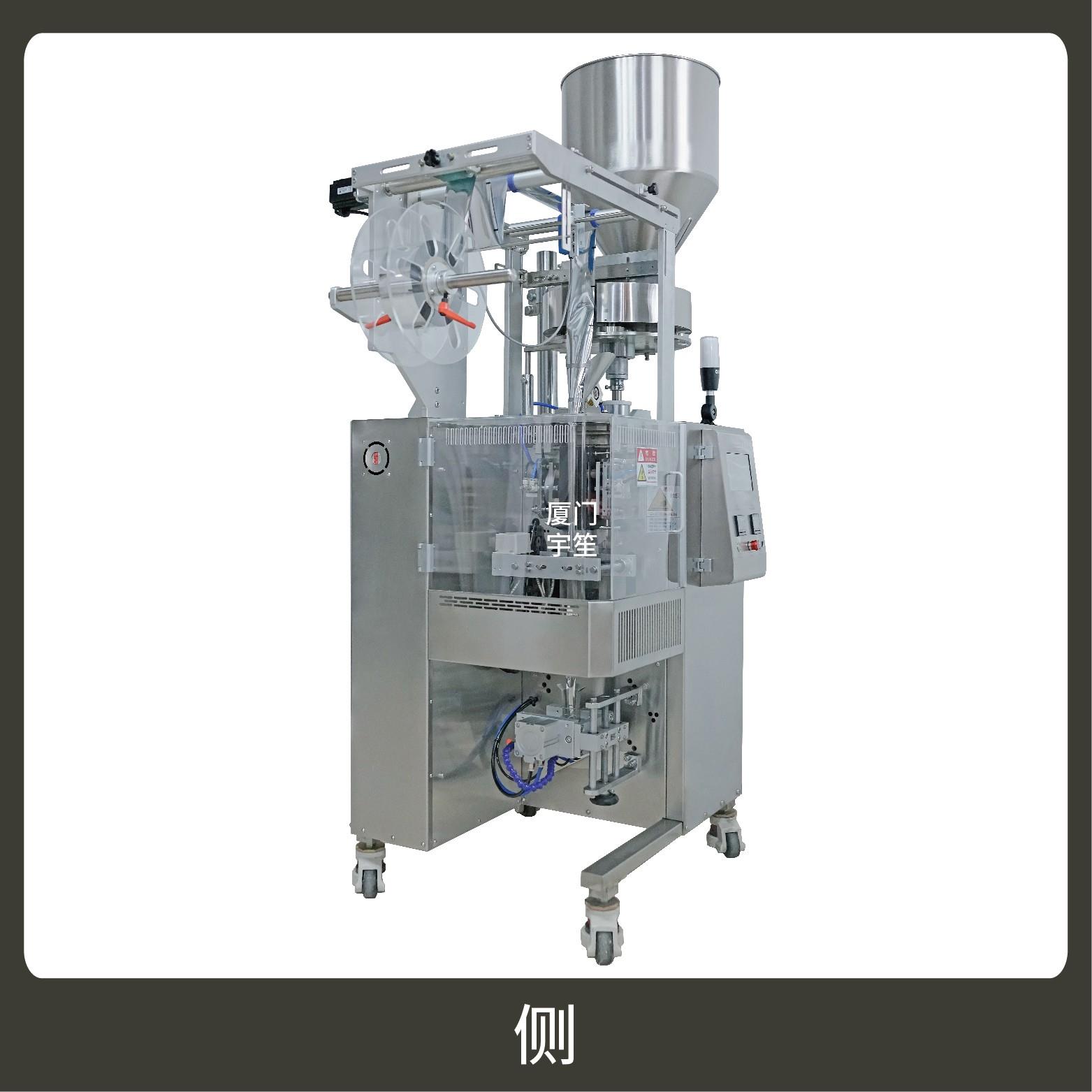

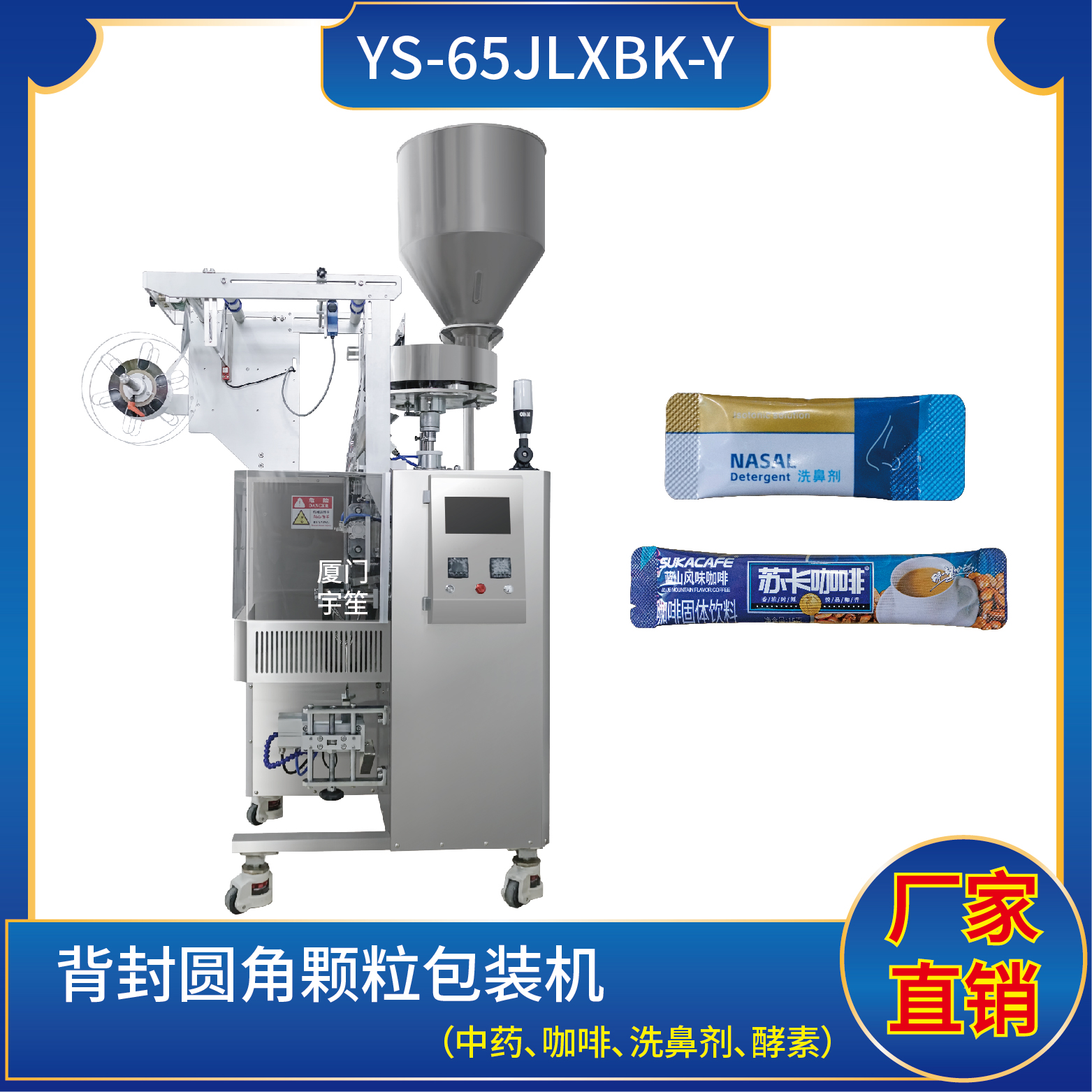

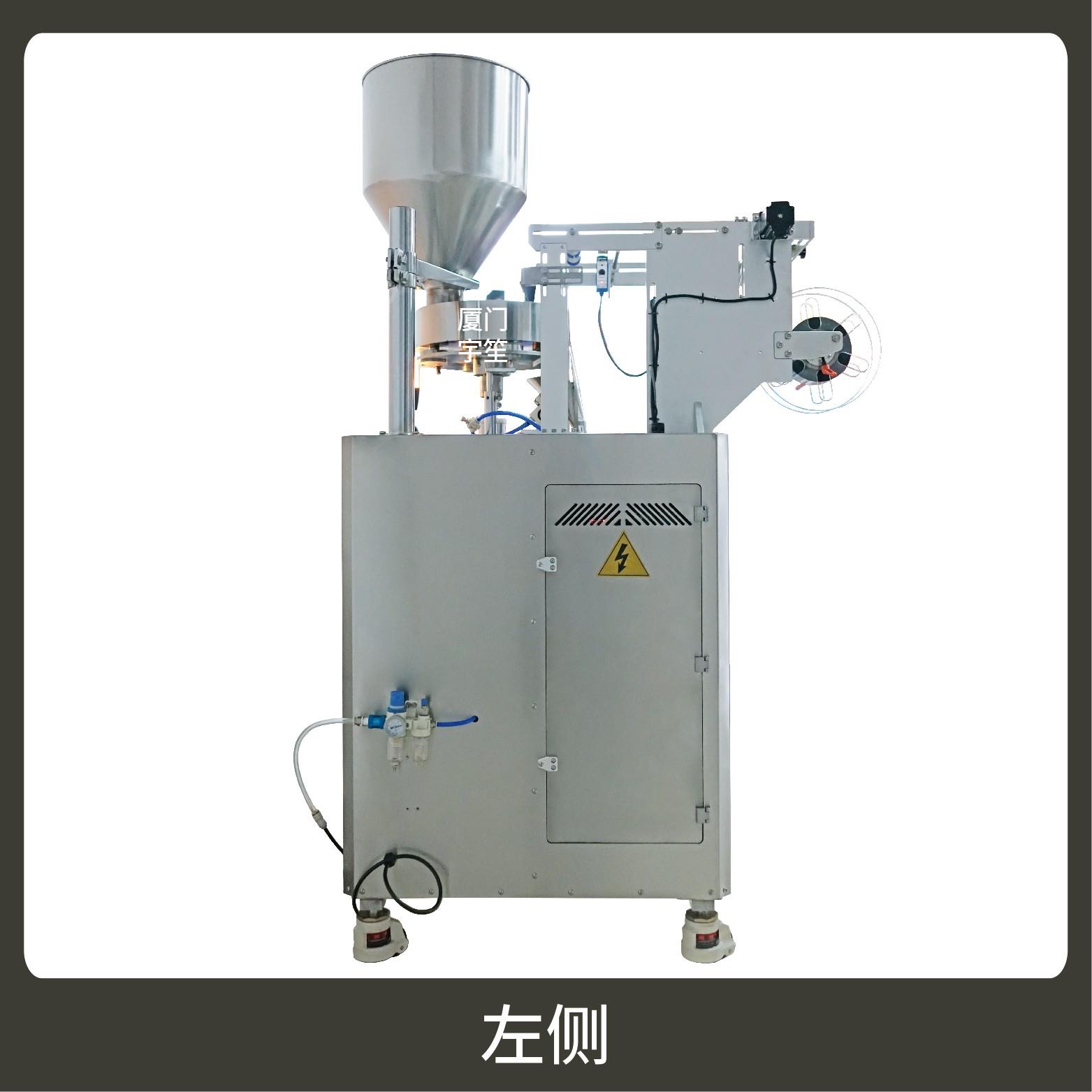

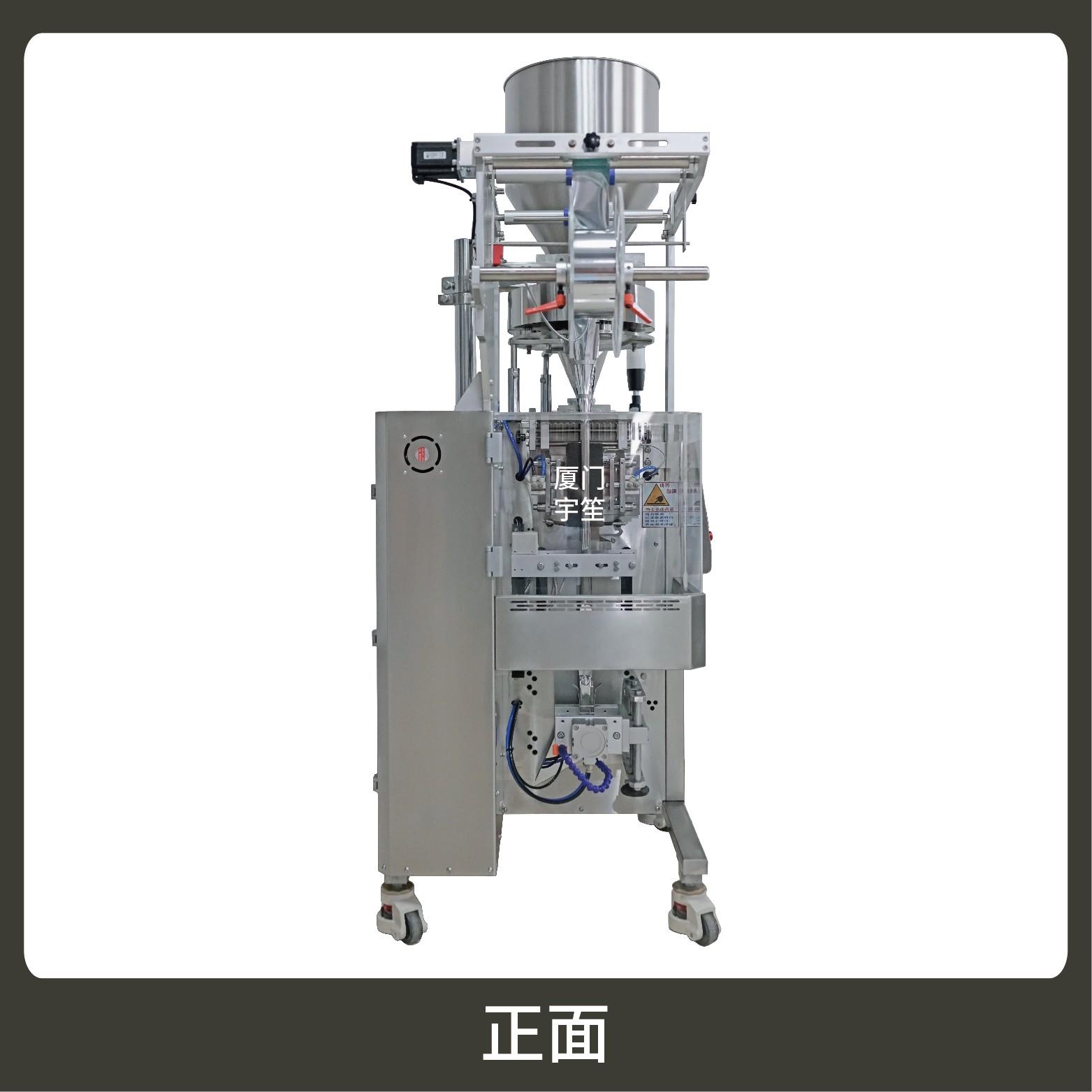

YS-65JLXBK-Y 背封圓角顆粒包裝機
YS-65JLXBF-Y 背封圓角顆粒包裝機
特 點 Characteristic
１、適用于食品、醫藥、化工、化妝品行業中顆粒物品的計量包裝。
The machine is suitable for the food, medicine, chemical industry, cosmetics industry of particles of measurement packing.
２、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、觸摸屏操作，PLC 控制，伺服電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以?xún)?nèi)。
The touch screen operation, PLC control, servo motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包裝材料：復合膜。
Packaging materials：composite film

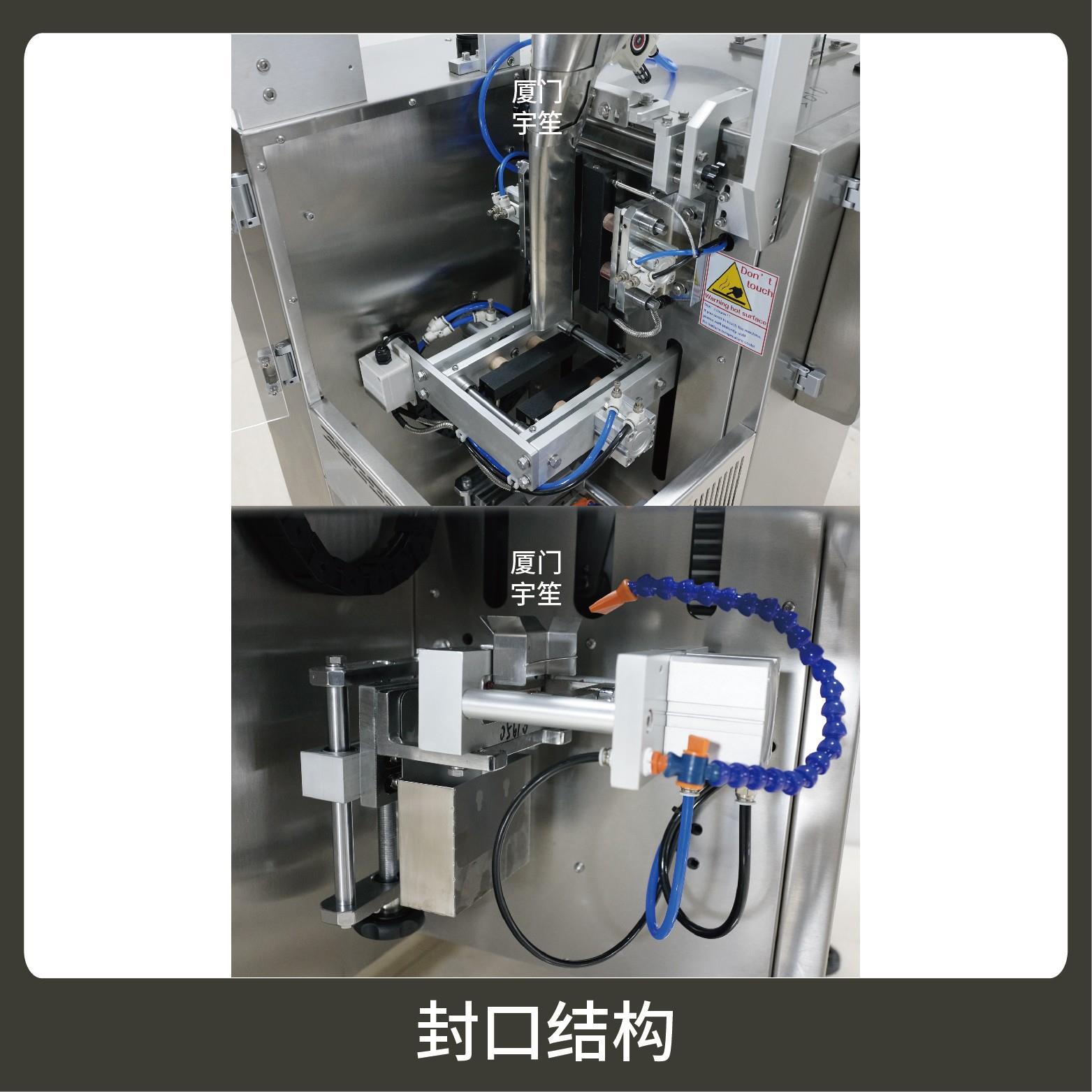

封口方式 Sealing Type
三邊封口 Three sidesSealing
背封封口 Back sealing
技術參數
Technical Parameters
計量范圍：1 - 20 g
Measuring Scope
包裝速度：30 - 70 bags/min
Packing Speed
制袋尺寸：長 ( L ) : 30 - 180 mm
Bag Size 寬 ( W ) : 20 - 75 mm
外型尺寸：780 * 1300 * 1790 mm
Dimension ( L * W * H )
整機重量：245 kg
Weight
總 功 率：220V / 50Hz / 2kw
Total Power
1、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
2、觸摸屏操作，PLC 控制，伺服電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以?xún)?nèi)。
The touch screen operation, PLC control, servo motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
計量范圍：1 - 20 g
Measuring Scope
包裝速度：30 - 70 bags/min
Packing Speed
制袋尺寸：長 ( L ) : 30 - 180 mm
Bag Size 寬 ( W ) : 20 - 75 mm
外型尺寸：780 * 1300 * 1790 mm
Dimension ( L * W * H )
整機重量：245 kg
Weight
總 功 率：220V / 50Hz / 2kw
Total Power
適用于食品、醫藥、化工、化妝品行業中顆粒物品的計量包裝。
The machine is suitable for the food, medicine, chemical industry, cosmetics industry of particles of measurement packing.
